サンドビック（株）コロマントカンパニー

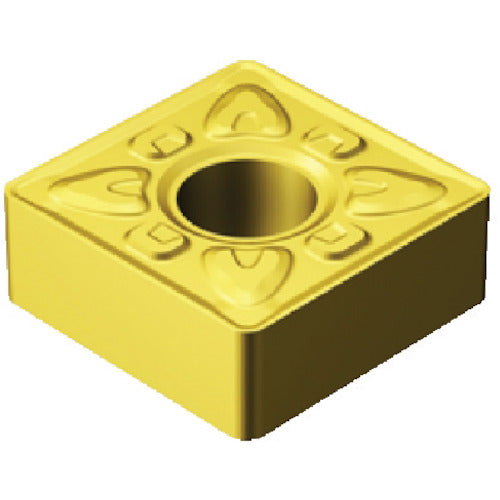

Sandvik T-Max P turning negative insert (110) GC15 SNMG 19 06 16-XMR 10 pieces
Sandvik T-Max P turning negative insert (110) GC15 SNMG 19 06 16-XMR 10 pieces
Regular price
¥39,840
Regular price
Sale price
¥39,840
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

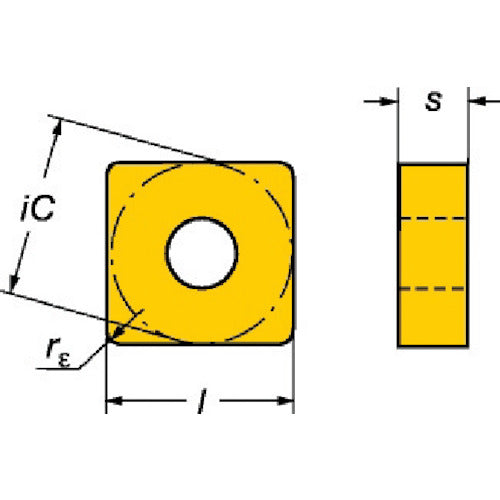

Catalog number: SNMG 19 06 16-XMR Features: ●Precision-grade coated carbide tip for external and general internal machining of mixed workpieces. Applications: ●For machining mixed workpieces. Specifications: ●Applicable workpiece material: MS ●Tip shape: Square ●Effective cutting edge length LE (mm): 17.45 ●Inscribed circle IC (mm): 19.05 ●Thickness S (mm): 6.35 ●Corner radius RE (mm): 1.5875 ●Hole diameter D1 (mm): 7.925 ●Main relief angle AN (°): 0 ●Coating: TiAlN + TiAlN ●Machining type: Roughing ●Breaker: XMR ●Thickness (mm): 6.35 ●Blade length (mm): 17.45 ●Tip relief angle (°): 0 ●Machining form: Rough cutting ●PVD coating
