サンドビック（株）コロマントカンパニー
Sandvik T-Max P turning negative insert (110) H13A SNMG 19 06 16-SMR 10 pieces
Sandvik T-Max P turning negative insert (110) H13A SNMG 19 06 16-SMR 10 pieces
Regular price
¥28,980
Regular price
Sale price
¥28,980
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

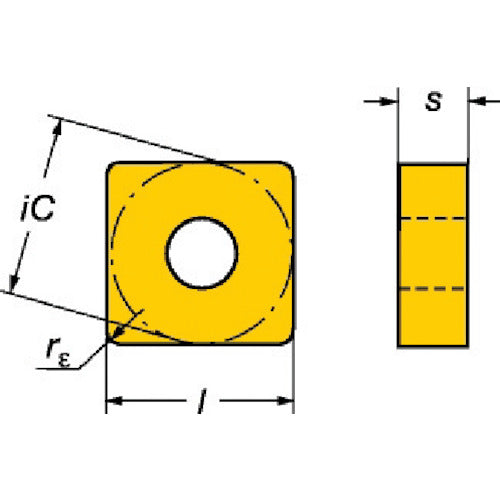

Catalog number: SNMG 19 06 16-SMR Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For medium to rough machining of aluminum alloys. Specifications: ●Suitable workpiece: MS ●Insert shape: Square ●Effective cutting edge length LE (mm): 12.7 ●Inscribed circle IC (mm): 19.05 ●Thickness S (mm): 6.35 ●Corner radius RE (mm): 1.5875 ●Hole diameter D1 (mm): 7.925 ●Main relief angle AN (°): 0 ●Coating: Uncoated ●Machining type: Roughing ●Breaker: SMR ●Thickness (mm): 6.35 ●Blade length (mm): 12.7 ●Insert relief angle (°): 0 ●Machining form: Rough cutting ●Non-coated carbide material
