サンドビック（株）コロマントカンパニー

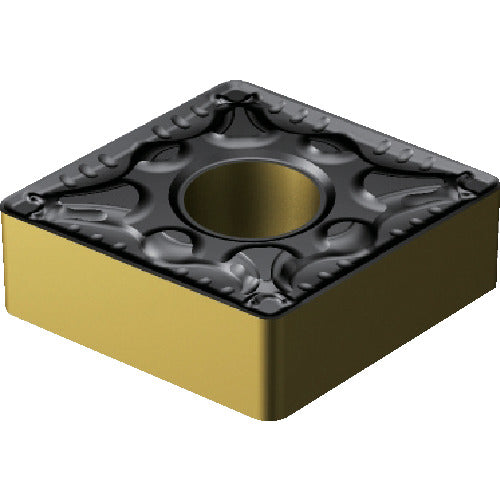

Sandvik T-Max P turning negative insert (112) 4415 CNMG 09 03 08-PM 10 pieces
Sandvik T-Max P turning negative insert (112) 4415 CNMG 09 03 08-PM 10 pieces
Regular price
¥12,612
Regular price
Sale price
¥12,612
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: CNMG 09 03 08-PM Features: ●The most suitable material for machining that requires heat resistance. Applications: ●For turning steel. ●For rough to finishing. Specifications: ●Suitable workpiece: PK ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 8.8719 ●Inscribed circle IC (mm): 9.525 ●Thickness S (mm): 3.175 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 3.81 ●Main relief angle AN (°): 0 ●Coating: TiCN+Al2O3+TiN ●Machining type: Medium ●Breaker: PM ●Thickness (mm): 3.175 ●Blade length (mm): 8.8719 ●Insert relief angle (°): 0 ●Machining type: Medium cutting ●CVD coating
