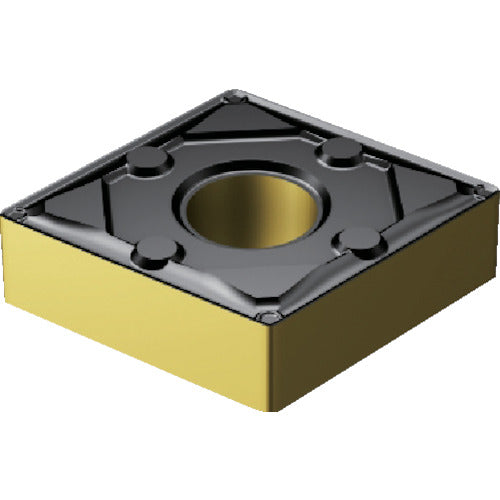

Sandvik T-Max P turning negative insert (112) 4415 CNMG090308-WF 10 pieces

Catalog number: CNMG090308-WF Features: ●The most suitable material for machining that requires heat resistance. ●Reliability is improved by the new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ●For turning steel. ●For rough to finishing machining. Specifications: ● Suitable workpiece material: PK ● Chip shape: diamond 80° ● Effective cutting edge length LE (mm): 8.8719 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.175 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Finishing ● Breaker: WF ● Thickness (mm): 3.175 ● Blade length (mm): 8.8719 ● Chip relief angle (°): 0 ● Processing type: Finishing cutting ● CVD coating
