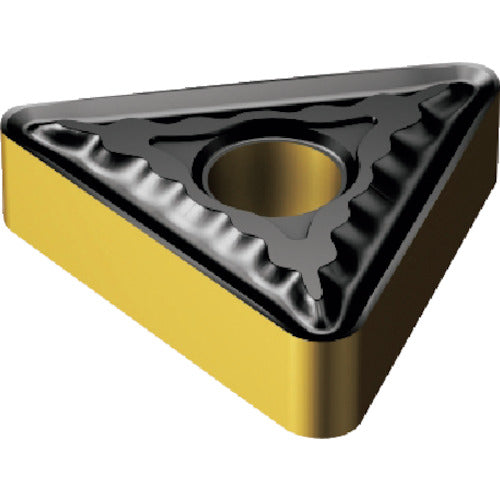

Sandvik T-Max P turning negative insert (112) 4415 TNMG110308-QM 10 pieces

Catalog number: TNMG110308-QM Features: ●The most suitable material for machining that requires heat resistance. ●Reliability is improved by the new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ●For turning steel. ●For rough to finish machining. Specifications: ● Suitable workpiece material: PK ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 10.1985 ● Inscribed circle IC (mm): 6.35 ● Thickness S (mm): 3.175 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 2.261 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: QM ● Thickness (mm): 3.175 ● Cutting edge length (mm): 10.1985 ● Insert relief angle (°): 0 ● Machining type: Medium cutting ● CVD coating material type
