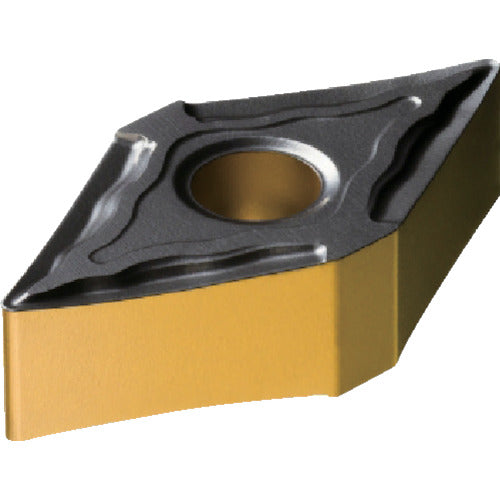

Sandvik T-Max P turning negative insert (112) 4425 DNMG 15 04 04-MF 10 pieces

Catalogue number: DNMG 15 04 04-MF Features: ● Suitable for most steel turning applications. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel applications. ● For rough to finish applications. Specifications: ● Suitable workpiece material: PK ● Chip shape: diamond 55° ● Effective cutting edge length LE (mm): 15.1038 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN+Al2O3+TiN ● Machining type: Finishing ● Breaker: MF ● Thickness (mm): 4.7625 ● Blade length (mm): 15.1038 ● Chip relief angle (°): 0 ● Machining form: Finishing cutting ● Improved crystal growth orientation provides more stable machining performance, as well as significantly improved wear resistance and tool life.
