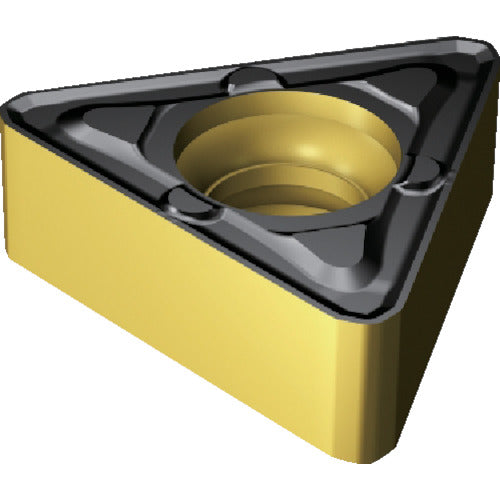

Sandvik T-Max P turning negative insert (112) 4425 TNMU 16 04 12-WM 10 pieces

Catalog number: TNMU 16 04 12-WM Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. ● For rough to finish processing. Specifications: ● Suitable workpiece material: P ● Tip shape: Triangle ● Effective cutting edge length LE (mm): 15.2978 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 4.6 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Finishing ● Breaker: WM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 15.2978 ● Tip relief angle (°): 0 ● Machining type: Finishing cutting ● CVD coating material type
