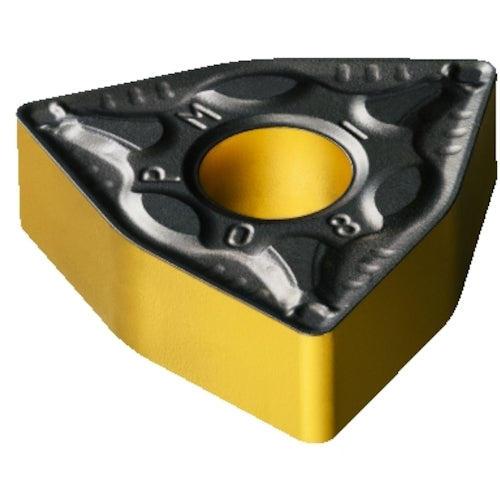

Sandvik T-Max P turning negative insert (112) 4425 WNMG060412-PM 10 pieces

Catalog number: WNMG060412-PM Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. ● For rough to finish processing. Specifications: ● Suitable workpiece material: PK ● Chip shape: 80° hexagon ● Effective cutting edge length LE (mm): 5.3155 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 3.81 ● Main clearance angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Corner radius (mm): 1.1906 ● Breaker: QM ● Thickness (mm): 4.7625 ● Blade length (mm): 5.3155 ● Chip clearance angle (°): 0 ● Machining type: Medium cutting ● CVD coating
