Sandvik T-Max P turning negative insert (110) 1125 WNMG 06 04 08-MM 10 pieces

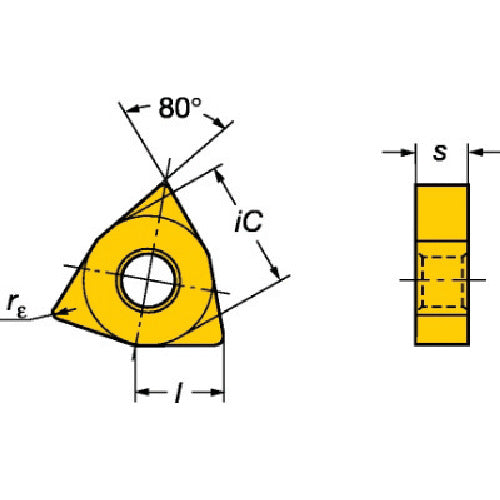

Catalog number: WNMG 06 04 08-MM Features: ●Excellent performance when smooth cutting and excellent cutting edge toughness or surface roughness are required. ●Excellent thermal shock resistance and ideal for light intermittent cutting. Applications: ●For general turning and machining of stainless steel. ●For general turning and machining of heat-resistant alloys. Specifications: ● Suitable workpiece material: PMNS ● Chip shape: 80° hexagon ● Effective cutting edge length LE (mm): 5.7155 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiAlN + TiAlN ● Machining type: Medium ● Corner radius (mm): 0.7938 ● Breaker: MF ● Thickness (mm): 4.7625 ● Blade length (mm): 5.7155 ● Chip relief angle (°): 0 ● Machining type: Medium cutting ● PVD coating
