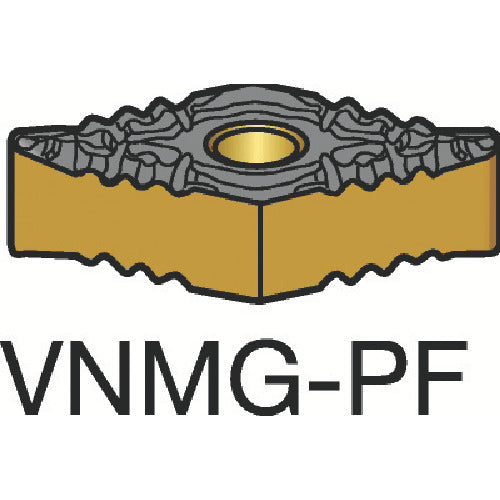

Sandvik T-Max P turning negative insert (110) 1515 VNMG 16 04 08-PF 10 pieces

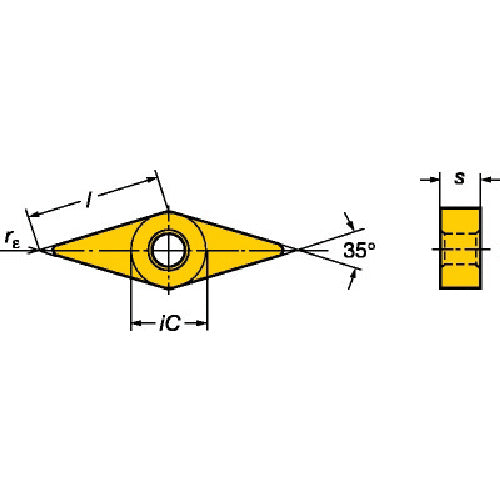

Catalog number: VNMG 16 04 08-PF Features: ●Ideal for cases where excellent surface roughness and sharp cutting edges are required. ●Excellent impact resistance for light intermittent cutting. Applications: ●For general turning steel processing. Specifications: ●Suitable workpiece: Steel, stainless steel ●Chip shape: 35° rhombus ●Effective cutting edge length LE (mm): 15.8063 ●Inscribed circle IC (mm): 9.525 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 3.81 ●Main relief angle AN (°): 0 ●Coating: TiCN+Al2O3+TiN ●Processing type: Finishing ●Corner radius (mm): 0.7938 ●Breaker: PF ●Thickness (mm): 4.7625 ●Blade length (mm): 15.8063 ●Chip relief angle (°): 0 ●Processing form: Finishing cutting ●CVD coating
