Sandvik T-Max P turning negative insert (110) 1525 WNMG 06 04 04-PF 10 pieces

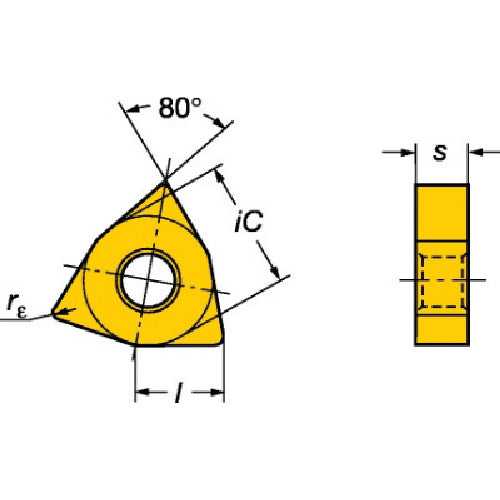

Catalog number: WNMG 06 04 04-PF Features: ● Excellent wear resistance and good cutting edge toughness. Applications: ● For general turning steel processing. Specifications: ● Suitable workpiece: PMK ● Insert shape: 80° hexagon ● Effective cutting edge length LE (mm): 6.1155 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + TiN ● Processing type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: PF ● Thickness (mm): 4.7625 ● Blade length (mm): 6.1155 ● Insert relief angle (°): 0 ● Processing type: Finishing cutting ● PVD coating
