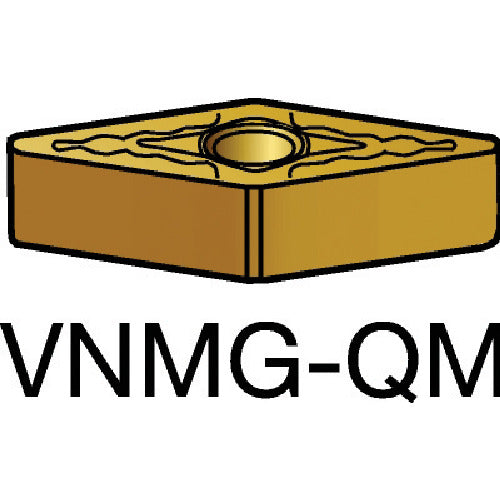

Sandvik T-Max P turning negative insert (110) 235 VNMG 16 04 04-QM 10 pieces

Catalog number: VNMG 16 04 04-QM Features: ●Material with high toughness and edge strength. Ideal for low-speed intermittent cutting. Applications: ●For general turning of steel and stainless steel. ●For rough cutting such as black skin. Specifications: ● Suitable workpiece material: steel, stainless steel ● Tip shape: 35° rhombus ● Effective cutting edge length LE (mm): 16.2063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + TiN ● Machining type: Medium ● Corner radius (mm): 0.3969 ● Breaker: QM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 16.2063 ● Tip relief angle (°): 0 ● Machining type: Medium cutting ● CVD coating
