Sandvik T-Max P turning negative insert (110) 3205 WNMG 08 04 16-KM 10 pieces
Sandvik T-Max P turning negative insert (110) 3205 WNMG 08 04 16-KM 10 pieces
Regular price
¥20,028
Regular price
Sale price
¥20,028
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

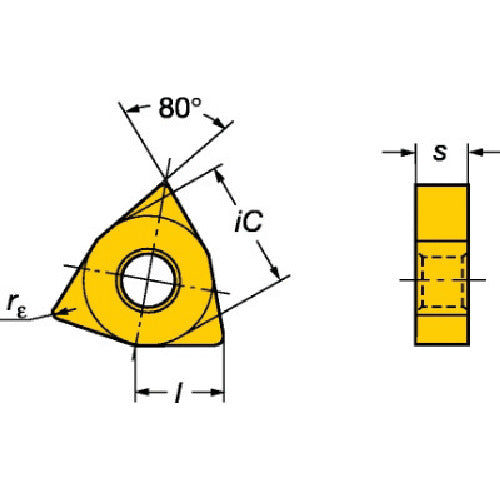

Catalog number: WNMG 08 04 16-KM Features: ●CVD-coated carbide material for external and general internal machining of small parts. Applications: ●For general turning and cast iron machining. Specifications: ●Suitable workpiece: K ●Insert shape: 80° hexagon ●Effective cutting edge length LE (mm): 7.0873 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 1.5875 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiCN+Al2O3+TiN ●Machining type: Medium ●Corner radius (mm): 1.5875 ●Breaker: KR ●Thickness (mm): 4.7625 ●Blade length (mm): 7.0873 ●Insert relief angle (°): 0 ●Machining type: Medium cutting ●CVD coating
