Sandvik T-Max P turning negative insert (110) 3210 WNMG 06 04 08-KR 10 pieces

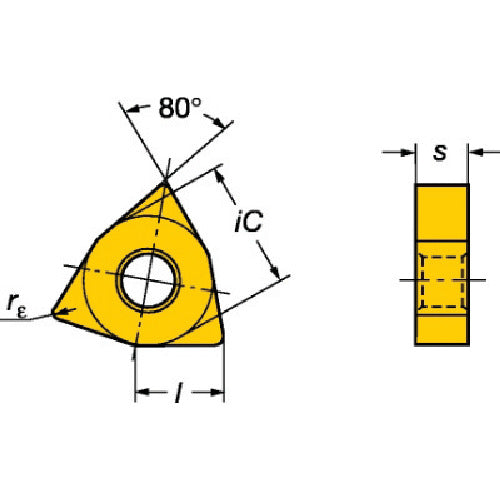

Catalog number: WNMG 06 04 08-KR Features: ● Demonstrates high flank wear resistance. ● Material type suitable for both continuous and intermittent cutting. Applications: ● For general turning cast iron machining. Specifications: ● Suitable workpiece material: K ● Insert shape: 80° hexagon ● Effective cutting edge length LE (mm): 5.7155 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Roughing ● Corner radius (mm): 0.7938 ● Breaker: KM ● Thickness (mm): 4.7625 ● Blade length (mm): 5.7155 ● Insert relief angle (°): 0 ● Machining form: Rough cutting ● CVD coating
