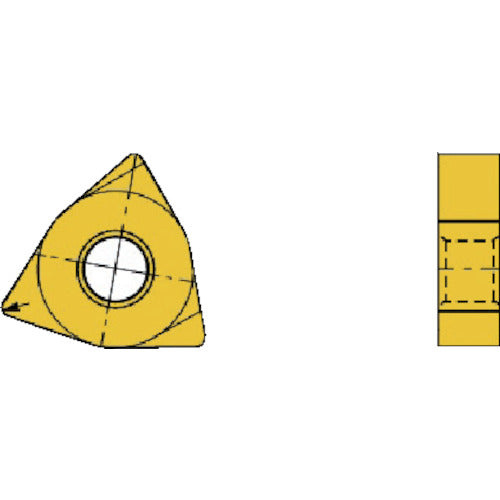

Sandvik T-Max P turning negative insert (110) 3225 WNMG 06 04 08-KR 10 pieces

Catalog number: WNMG 06 04 08-KR Features: ●CVD coated carbide material with high cutting edge reliability. ●Suitable for light to heavy interrupted cutting. Applications: ●For general turning and cast iron processing. Specifications: ● Suitable workpiece material: K ● Tip shape: 80° hexagon ● Effective cutting edge length LE (mm): 5.7155 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Roughing ● Corner radius (mm): 0.7938 ● Breaker: WMX ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 5.7155 ● Tip relief angle (°): 0 ● Machining form: Rough cutting ● CVD coating Material / Finish: ● Carbide
