サンドビック（株）コロマントカンパニー
Sandvik T-Max P turning negative insert (110) 5015 WNMG 06 04 04-WF 10 pieces
Sandvik T-Max P turning negative insert (110) 5015 WNMG 06 04 04-WF 10 pieces
Regular price
¥16,668
Regular price
Sale price
¥16,668
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

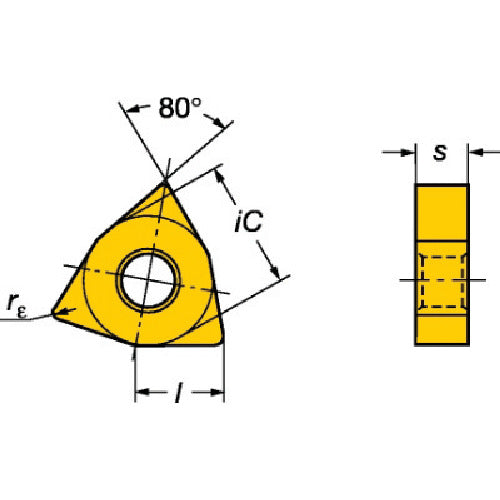

Catalogue number: WNMG 06 04 04-WF Features: ●Excellent resistance to built-up edge and plastic deformation. Applications: ●For general turning steel. ●For finishing. Specifications: ●Suitable workpiece: PK ●Insert shape: 80° hexagon ●Effective cutting edge length LE (mm): 6.1155 ●Inscribed circle IC (mm): 9.525 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 3.81 ●Main relief angle AN (°): 0 ●Coating: Uncoated ●Machining type: Finishing ●Corner radius (mm): 0.3969 ●Breaker: WF ●Thickness (mm): 4.7625 ●Blade length (mm): 6.1155 ●Insert relief angle (°): 0 ●Machining form: Finishing cutting ●Non-coated
