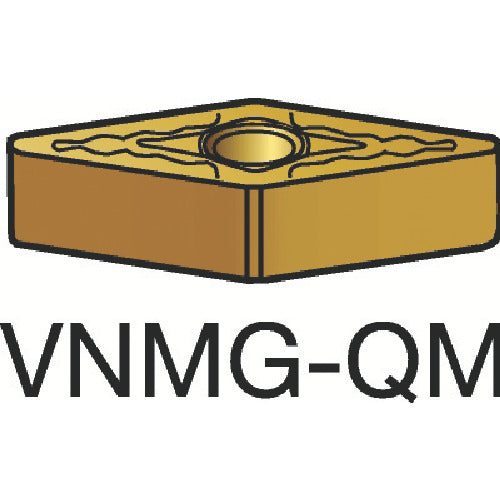

Sandvik T-Max P turning negative insert (110) H13A VNMG 16 04 08-QM 10 pieces

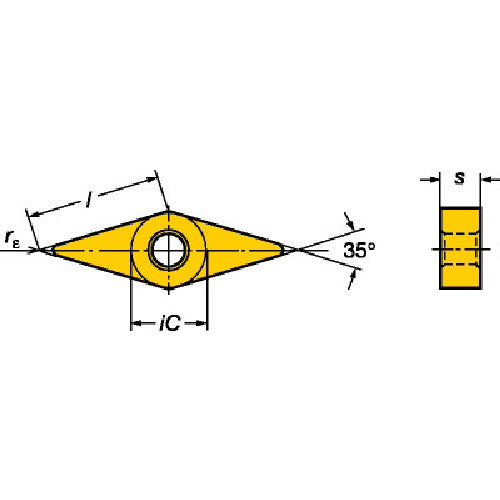

Catalog number: VNMG 16 04 08-QM Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For medium to rough cutting of aluminum alloys. Specifications: ● Suitable workpiece materials: steel, stainless steel, cast iron, super alloys and titanium ● Tip shape: 35° rhombus ● Effective cutting edge length LE (mm): 15.8063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Medium ● Corner radius (mm): 0.7938 ● Breaker: QM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 15.8063 ● Tip relief angle (°): 0 ● Machining type: Medium cutting
