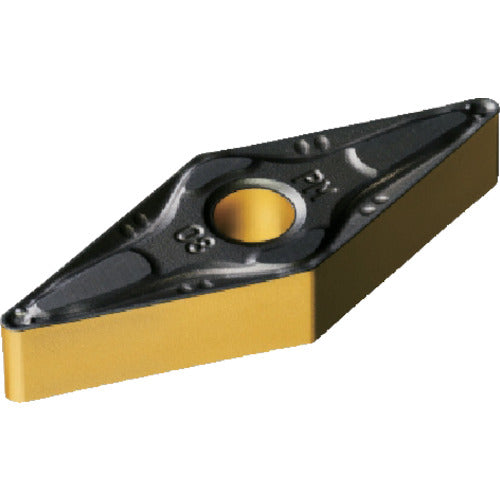

Sandvik T-Max P turning negative insert (112) 4335 VNMG 16 04 08-PM 10 pieces

Catalog number: VNMG 16 04 08-PM Features: ●Coated grade for steel and cast steel in unstable cutting conditions. ●High cutting edge reliability and excellent chip removal rate in interrupted cutting. Applications: ●For general turning steel machining. Specifications: ● Suitable workpiece material: Steel ● Chip shape: 35° rhombus ● Effective cutting edge length LE (mm): 15.8063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Corner radius (mm): 0.7938 ● Breaker: PM ● Thickness (mm): 4.7625 ● Blade length (mm): 15.8063 ● Chip relief angle (°): 0 ● Machining type: Medium cutting ● CVD coating
