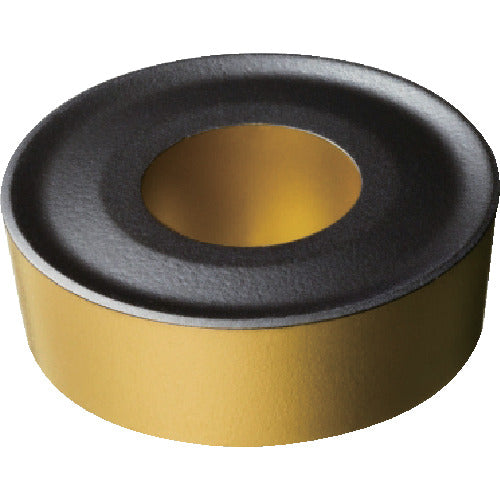

Sandvik T-Max P turning positive insert (112) 4415 RCMX 10 03 00 10 pieces

Catalog number: RCMX 10 03 00 Features: ●This material is ideal for machining that requires heat resistance. ●The new base material combines resistance to plastic deformation with good toughness, resulting in improved reliability. Stability is improved by increasing the cobalt content toward the surface. Applications: ●For turning steel machining. ●For rough to finishing machining. Specifications: ●Suitable workpiece material: PK ●Insert shape: Round ●Inscribed circle IC (mm): 10 ●Thickness S (mm): 3.175 ●Corner radius RE (mm): 5 ●Hole diameter D1 (mm): 3.6 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Machining type: Medium ●Corner radius (mm): 5 ●Thickness (mm): 3.175 ●Insert relief angle (°): 7 ●Machining form: Medium cutting ●CVD coating material
