Sandvik T-Max P turning CBN negative insert (620) 7015 CNGA120412S01030-AWG 5 pieces

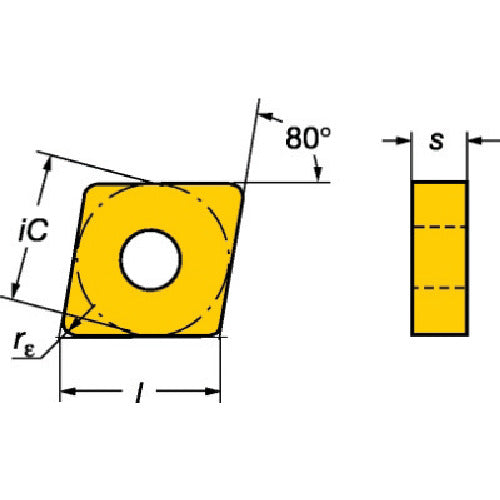

Catalog number: CNGA120412S01030-AWG Features: ● A material with low CBN content that demonstrates high machining performance. Applications: ● For general turning and high-hardness steel machining. ● For high-speed continuous cutting and light intermittent cutting. Specifications: ● Suitable workpiece: H ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 2.8 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiN ● Machining type: Finishing ● Breaker: WG ● Thickness (mm): 4.7625 ● Blade length (mm): 2.8 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● PVD coating
