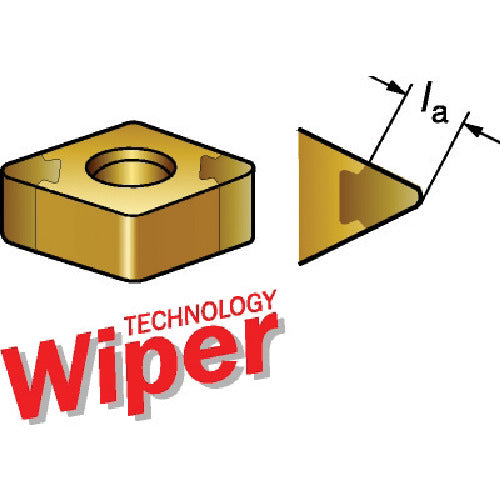

Sandvik T-Max P turning CBN negative insert (620) 7025 DNGA150412S01030AWH 5 pieces

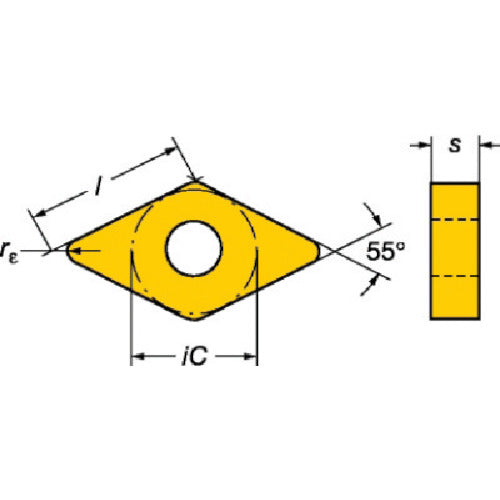

Catalog number: DNGA150412S01030AWH Features: ● A material with a medium CBN content that demonstrates high machining performance. Applications: ● For general turning and high-hardness steel machining. ● For intermittent heavy cutting or medium-speed continuous cutting. Specifications: ● Suitable workpiece: H ● Insert shape: Diamond 55° ● Effective cutting edge length LE (mm): 3.3 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Finishing ● Breaker: WH ● Thickness (mm): 4.7625 ● Blade length (mm): 3.3 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● CBN insert
