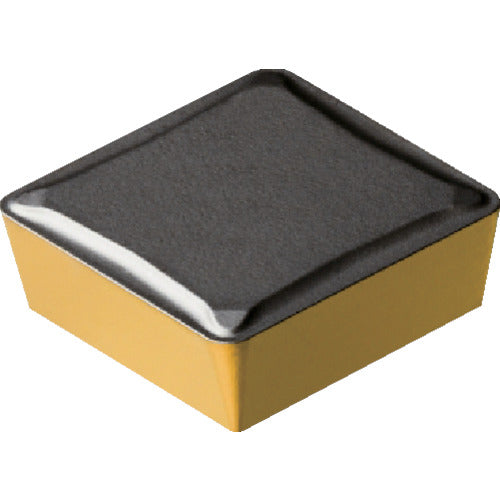

Sandvik T-Max S turning positive insert (112) 4425 SPMR 09 03 08-53 10 pieces

Catalogue number: SPMR 09 03 08-53 Features: ● Suitable for most steel turning applications. ● New base material combines resistance to plastic deformation with good toughness for improved reliability. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. Specifications: ● Suitable workpiece: PK ● Insert shape: Square ● Effective cutting edge length LE (mm): 8.725 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.175 ● Corner radius RE (mm): 0.7938 ● Main relief angle AN (°): 11 ● Coating: TiCN+Al2O3+TiN ● Processing type: Finishing ● Breaker: 53 ● Thickness (mm): 3.175 ● Blade length (mm): 8.725 ● Insert relief angle (°): 11 ● Processing form: Finishing cutting ● CVD coating material type
