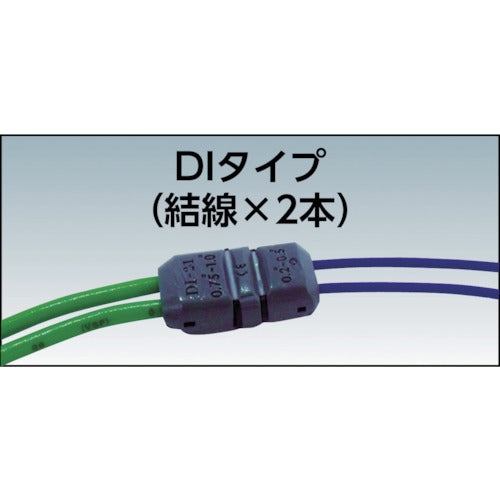

Catalog number: EC-DI1 Features: ● Secure wiring with simple snap-close operation using pliers. ● No need to strip wires. ● No contact failures as there are two or more contact points. ● Dustproof and rainproof. (IP33 equivalent) Applications: ● Connection and branching of power, communication and signal wires. Specifications: ● Suitable wire (AWG): #27-#20 ● Suitable wire cross-sectional area (mm2): 0.2-0.5 ● Rated current (A): 3 ● Rated voltage (V): 600 ● Connection type: I-type wiring x 2 Materials/Finish: ● Terminal: Brass, tin-plated ● Insulating cover: Flame-retardant PC/ABS material
