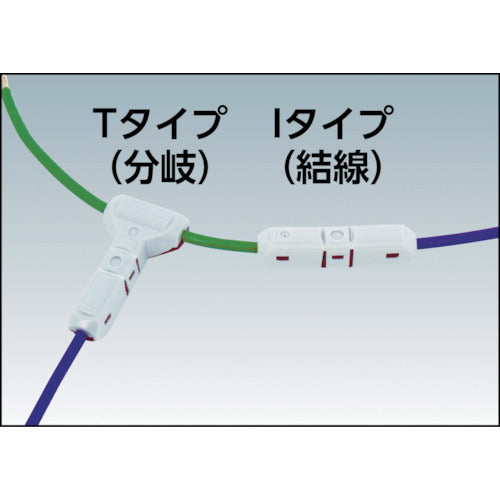

Sanhayato JOW Connectors EC-T3 6 pieces EC-T3 1 PK
Sanhayato JOW Connectors EC-T3 6 pieces EC-T3 1 PK
Regular price
¥1,117
Regular price
Sale price
¥1,117
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: EC-T3 Features: ● Secure wiring with simple snap-close operation using pliers. ● No need to strip wires. ● No contact failures as there are two or more contact points. ● Dustproof and rainproof. (Equivalent to IP33) Applications: ● Connection and branching of power, communication and signal wires. Specifications: ● Suitable wire (AWG): #16 to #14 ● Suitable wire cross-sectional area (mm2): 1.5 ● Rated current (A): 15 ● Rated voltage (V): 600 ● Connection type: T-type branch Material/Finish: ● Terminal: Brass, tin-plated ● Insulating cover: Flame-retardant PC/ABS material
