(株)三洋化成

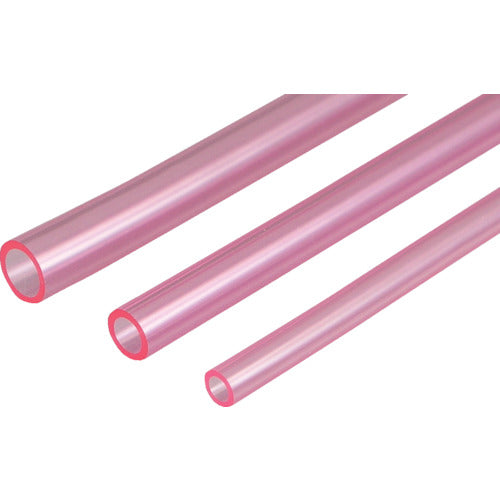

Sanyo Oil-Resistant Fuel Tube 5x8 (F-5) 40m F-5 1 roll
Sanyo Oil-Resistant Fuel Tube 5x8 (F-5) 40m F-5 1 roll
Regular price
¥5,070
Regular price
Sale price
¥5,070
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: F-5 Features: ●Special oil-resistant tube that can be used for a long time compared to conventional oil-resistant tubes. ●Not subject to JASO standards. ●Soft and hard to break, so the bending radius is small, making it ideal for installation and piping in narrow areas. Applications: ●Various equipment such as chainsaws, tractors, and lawnmowers. Specifications: ●Length (m): 40 ●Inner diameter (mm): 5 ●Outer diameter (mm): 8 ●Operating pressure (MPa): 0.23 ●Allowable bending radius (mm or more): 30 ●Operating temperature range (℃): -10 to 60 ●Applicable fluid: Fuel (gasoline, diesel, etc.) ●Color: Pink clear ●Embrittle temperature: -40℃ Material/Finish: ●Polyvinyl chloride (PVC) Caution: ●Operating pressure is at an ambient temperature of 23℃.
