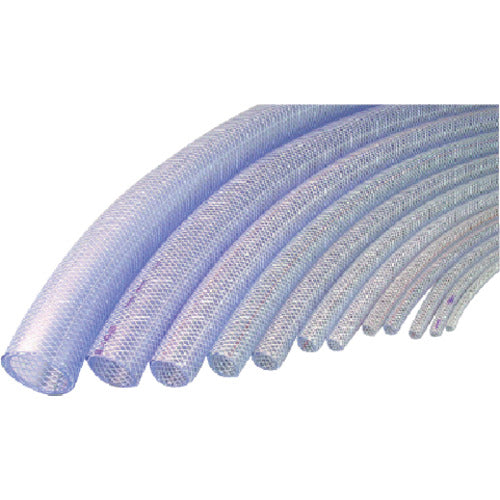

Sanyo SK Soft Braid Hose 19 x 26 50m Cassette SB-1926K50B 1 roll

Catalogue number: SB-1926K50B Features: ● Industrial hose with excellent pressure resistance and elasticity. ● Suitable for piping, repair, and extension of various equipment. ● Thick-walled pressure-resistant hose ideal for piping of equipment such as sprayers and pumps. ● A hose with excellent cold resistance that remains soft even in cold weather. ● A pressure-resistant hose with enhanced pressure resistance due to the strength and structure of the intermediate reinforcing thread. ● A clear type hose that allows you to check the fluid. Applications: ● For piping of factory equipment, machinery equipment, etc. ● For industrial piping. Specifications: ● Length (m): 50 ● Inner diameter (mm): 19 ● Outer diameter (mm): 26 ● Operating pressure (MPa): 1.0 (at ambient temperature of 23°C) ● Allowable bending radius (mm or more): 78 ● Color: Clear ● Double-tube hose with thread ● Applicable ambient temperature range: -10 to 60°C ● Applicable fluid temperature range: 0 to 60°C ● Brittleness temperature: -40°C ● Compliant with the Food Sanitation Act (Ministry of Health, Labor and Welfare Notification No. 370) ● Compatible fluids: water and air ● Maximum operating pressure (water): 1.0MPa (at ambient temperature of 23°C), 0.5MPa (at ambient temperature of 60°C) ● Maximum operating pressure (air): 0.8MPa (at ambient temperature of 23°C) Material/Finish: ● PVC ● Polyester thread
