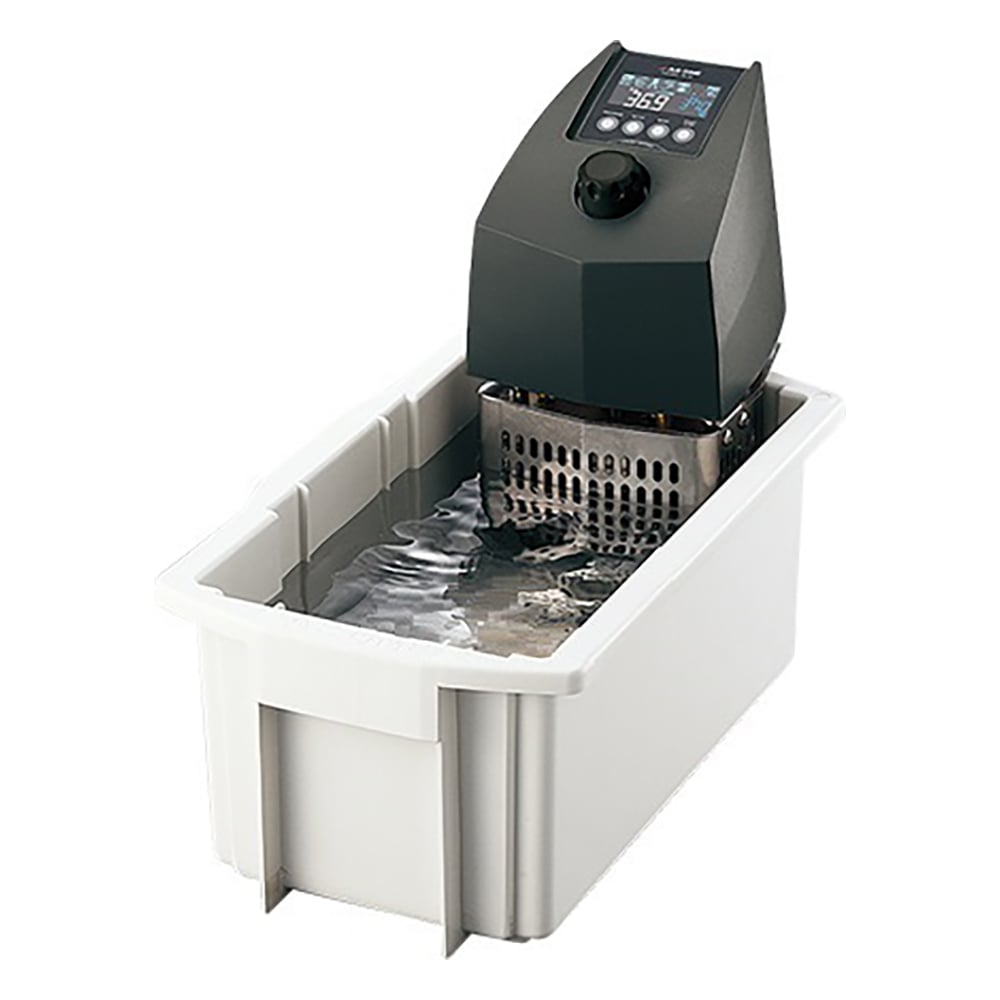

Thermax Water Bath TM-2A 1 piece

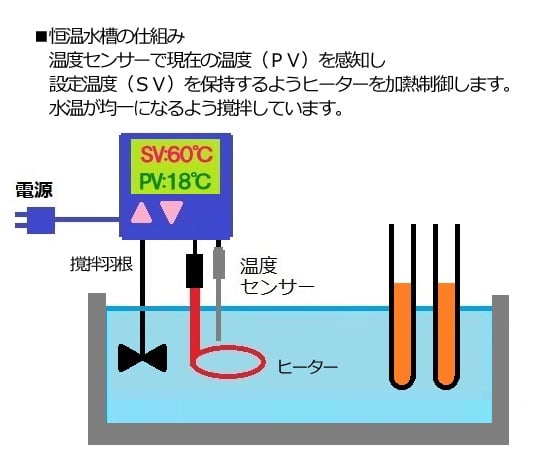

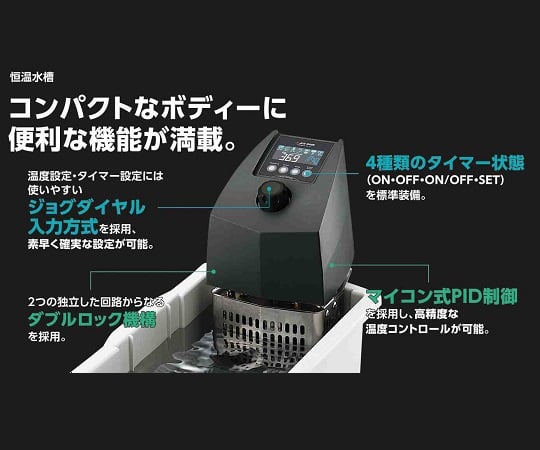

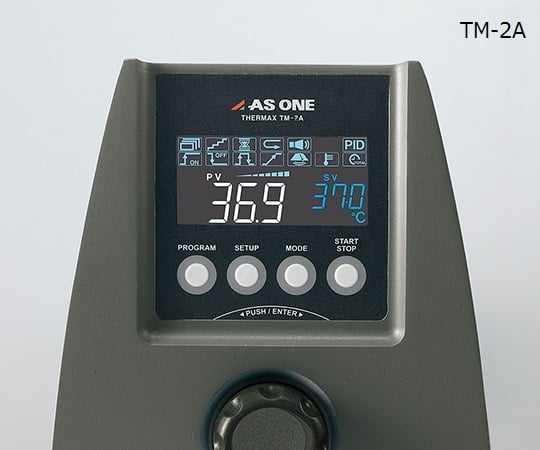

The compact body is packed with convenient functions. By using a sophisticated temperature control algorithm and a platinum temperature sensor with low error, high-precision temperature control is possible. An easy-to-use jog dial input method is used for temperature and timer settings, allowing for quick and accurate settings. Microcomputer-based PID control enables highly precise temperature control. Equipped with a buzzer to notify you when the set temperature and time are reached. Uses a double lock mechanism consisting of two independent circuits. Four types of timer states (ON, OFF, ON/OFF, SV) are standard. Beautiful and easy-to-read display screen. Uses a negative backlight LCD for good visibility. It is also possible to set the key lock and display the accumulated operating time, timer, and remaining time of the program. Body dimensions (mm): 150 x 160 x 308 Effective internal dimensions (mm): 180 x 252 x 153 Type: Water bath Performance: Temperature adjustment range: Room temperature +5 to 80°C Temperature control accuracy: ±1.0℃ (in-house test value) Temperature setting range: -20.0 to +80.0°C (The unit does not have a cooling function. Please use an external (optional) cooling device.) Functions: Program (up to 8 steps), float type dry-burn prevention, buzzer alarm, abnormal heating prevention device (thermostat) composition: Sensor: Pt100Ω Heater capacity: 1kW standard: Mixing mechanism: Jet mixing type Pump capacity: Maximum discharge volume/10L/min, Maximum head/1.4m Timer setting range: 1 minute to 99 hours 59 minutes (in 1 minute increments) Clamp mounting width: 40mm Power supply: AC100V 50/60Hz Accessories: Water tank (PP) This product can be provided with validation services (IQ/OQ). Please feel free to contact us. *Validation service is a service that performs installation qualification (IQ) and operational qualification (OQ) at the customer's site and submits an inspection report. Due to a change in the specifications of the main power switch, the part number of this product is scheduled to change. The main power switch of the successor model will be changed to red. There are no other changes. Substitute: 1-4594-42 THERMAX Jet Mixing Type RoHS2 (EU)2015/863 compliant [About RoHS]
