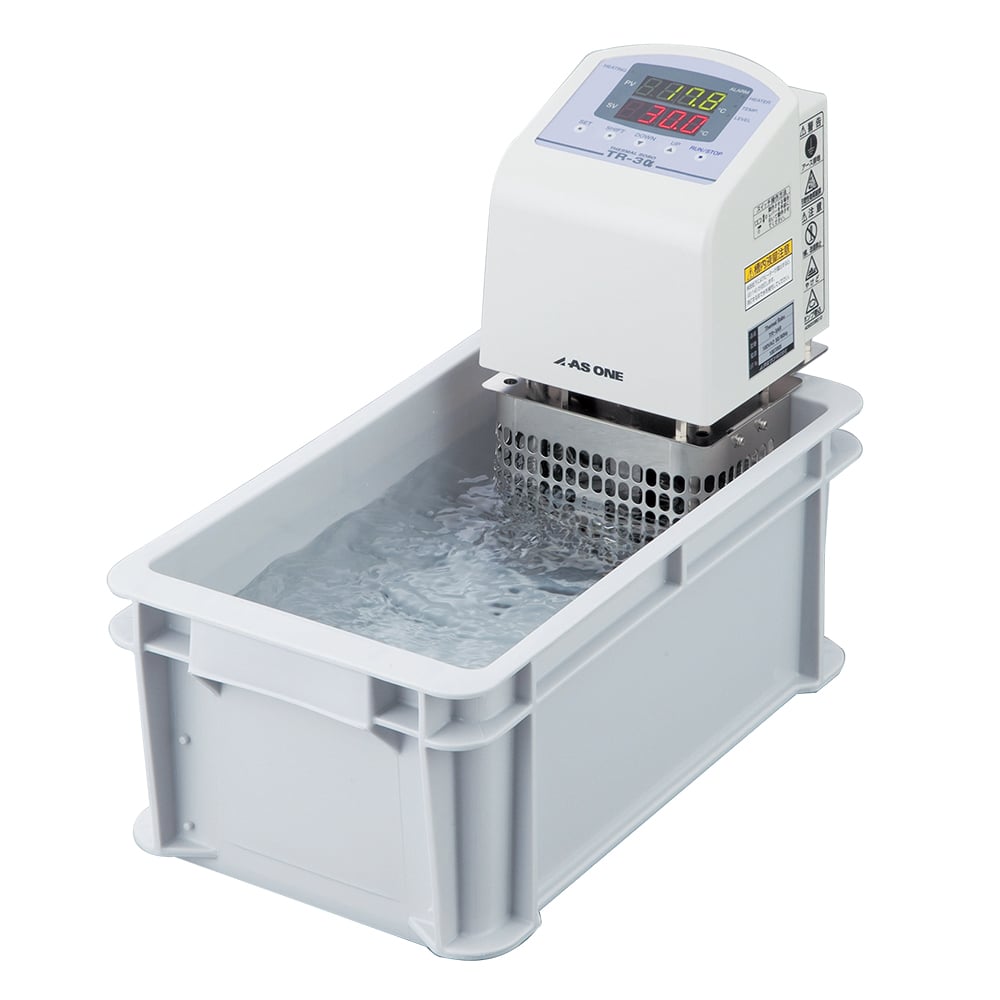

Thermal Robo TR-3α 1 unit

All models come with a float-type dry-burn prevention function! We also have a lineup of models with adjustable flow rate! You can now switch the water flow (strong/weak)! The agitation pump adjustment function allows you to switch the pump flow rate between two levels depending on the object. Microcomputer-based PID control achieves highly precise temperature control. It has a high level of safety thanks to the use of a double lock mechanism consisting of two independent circuits. Equipped with an on/off timer function, it can be automatically started or stopped after a set time has elapsed. External dimensions (mm): 140 x 150 x 310 Tank interior dimensions (mm): 194 x 336 x 156 Type: Water bath Temperature adjustment range: Room temperature +5 to 80°C (MAX 70°C when using the included water tank) Temperature setting range *1: -20.0 to +80.0°C Temperature control accuracy *2: ±0.02℃ function Program (maximum 8 steps, repeat setting possible) Buzzer alarm Abnormal overheating prevention device (thermostat), circuit protector, float type dry-burn prevention Compatible with external temperature sensor (sold separately), output for recorder, alarm signal output Sensor: Thermistor Heater capacity: 1kW (made of stainless steel (SUS316)) Mixing mechanism: Jet mixing type Pump capacity: Maximum discharge volume/10L/min, Maximum head/1.4m (pump only) Timer setting range: 1 minute to 99 hours (in 1 minute increments) Clamp mounting width: 40mm Power supply: AC100V 50/60Hz (power consumption: MAX1.1kVA) Accessories: PP (polypropylene) water tank *1 The unit does not have a cooling function. Please use an external cooling device (optional). *2 Performance of the controller alone. Varies depending on usage conditions.
