Shishiku urethane fixed wheel 100mm UWKB-100 1 piece

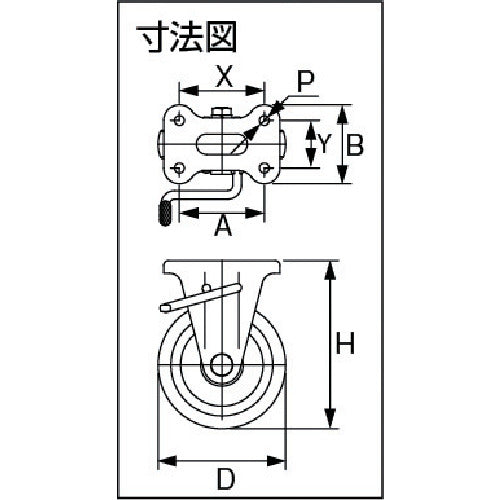

Catalog number: UWKB-100 Features: ●Standard press caster with SISIKU's unique box-style wheel specifications, with confidence in its strength. ●Excellent impact resistance and oil resistance. Uses: ● For various transport carts ● For general commercial equipment Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed (with stopper) ● Allowable load (daN): 176 ● Allowable load (kgf): 180 ● Wheel width (mm): 35 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 79 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 1765 ● Plate type ● Press bearing included (with retainer) ● Fixed (with stopper) ● Also available with left side stopper (except Φ75) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, urethane
