Shishiku urethane fixed wheel 200mm UWKB-200 1 piece

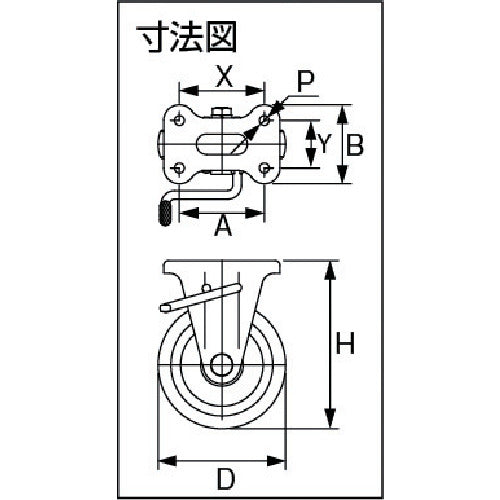

Catalog number: UWKB-200 Features: ●Standard press caster with SISIKU's unique box-style wheel specifications, with confidence in its strength. ●Excellent impact resistance and oil resistance. Uses: ● For various transport carts ● For general commercial equipment Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed (with stopper) ● Allowable load (daN): 392 ● Allowable load (kgf): 400 ● Wheel width (mm): 45 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 151 ● Mounting seat B (mm): 100 ● Mounting pitch X (mm): 112 ● Mounting pitch Y (mm): 63 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 3922 ● Plate type ● Press bearing included (with retainer) ● Fixed (with stopper) ● Also available with left side stopper (except Φ75) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, urethane
