Sisiku Standard Press Caster Urethane Wheel with Fixed Stopper 75 Diameter UWKB-75 1 pc

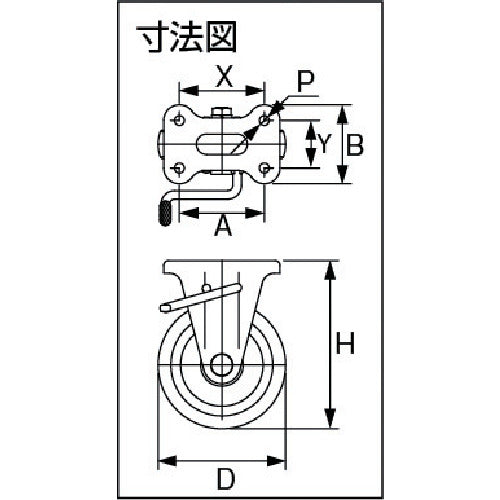

Catalog number: UWKB-75 Features: ●Standard press caster with SISIKU's unique box-style wheel specifications that are strong and reliable. ●Excellent impact resistance and oil resistance. Uses: ● For various transport carts ● For general commercial equipment Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed (with stopper) ● Allowable load (daN): 117 ● Allowable load (kgf): 120 ● Wheel width (mm): 32 ● Mounting height H (mm): 103 ● Mounting seat A (mm): 91 ● Mounting seat B (mm): 68 ● Mounting pitch X (mm): 63 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 9.5 ● Allowable load (N): 1177 ● Plate type ● Press bearing included (with retainer) ● Fixed (with stopper) ● Also available with left side stopper (except Φ75) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Steel wheels, urethane
