Sisiku Standard Press Caster, Urethane Wheel, Fixed, 100 Diameter, UWK-100, 1 Piece

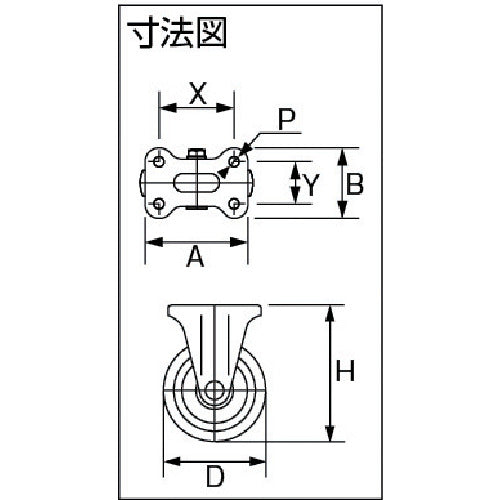

Catalogue number: UWK-100 Features: ●Standard pressed caster with SISIKU's unique box-style wheels that are strong and reliable. ●Excellent impact resistance and oil resistance. Applications: ●For various transport carts Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 176 ●Allowable load (kgf): 180 ●Wheel width (mm): 35 ●Mounting height H (mm): 144 ●Mounting seat A (mm): 115 ●Mounting seat B (mm): 79 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 45 ●Mounting hole diameter P (mm): 11.0 ●Allowable load (N): 1765 ●Plate type ●Pressed bearing (with retainer) ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Steel wheels, urethane
