Sisiku Standard Press Caster, Urethane Wheel, Fixed, 75 Diameter, UWK-75, 1 Piece

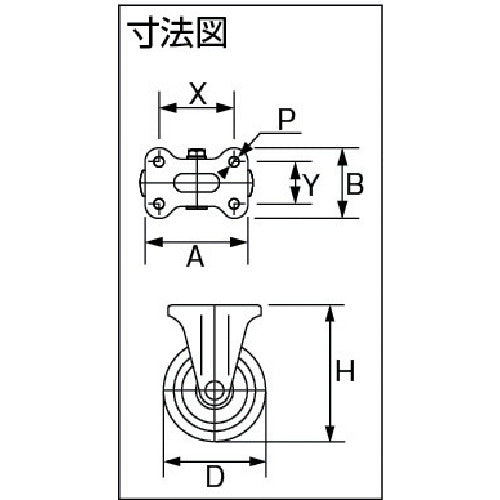

Catalogue number: UWK-75 Features: ●Standard pressed caster with SISIKU's unique box-style wheels that are strong and reliable. ●Excellent impact resistance and oil resistance. Applications: ●For various transport carts Specifications: ●Wheel diameter D (mm): 75 ●Type: Fixed type ●Allowable load (daN): 117 ●Allowable load (kgf): 120 ●Wheel width (mm): 32 ●Mounting height H (mm): 103 ●Mounting seat A (mm): 91 ●Mounting seat B (mm): 68 ●Mounting pitch X (mm): 63 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 9.5 ●Allowable load (N): 1177 ●Plate type ●Pressed bearing (with retainer) ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromate finish ●Wheels: Steel wheels, urethane
