Sisiku Stainless Steel Caster with Fixed Urethane Wheels SUNK-100-POTH 1 pc

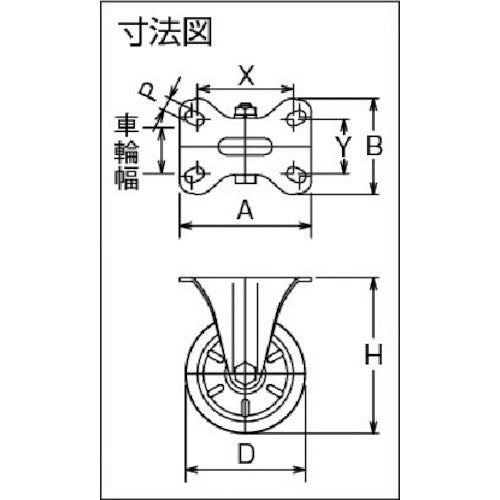

Catalogue number: SUNK-100-POTH Features: ●Stainless steel (SUS304) is used for the core, swivel section, and bearings. ●The swivel section is equipped with a smooth-moving double-layer bearing with a dust cover. Applications: ●Transportation of electronic parts and precision measuring devices Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 147 ●Allowable load (kgf): 150 ●Wheel width (mm): 35 ●Mounting height H (mm): 130 ●Mounting seat A (mm): 110 ●Mounting seat B (mm): 80 ●Mounting pitch X (mm): 80-90 ●Mounting pitch Y (mm): 45-50 ●Mounting hole diameter P (mm): 11 ●Plate type ●Stainless steel needle bearing included (stainless steel collar included for wheel diameter 200 mm) ●Fixed type ●Stainless steel needle bearing included Materials/Finish: ●Hardware: Stainless steel (SUS304) ●Wheels: Nylon wheel, urethane
