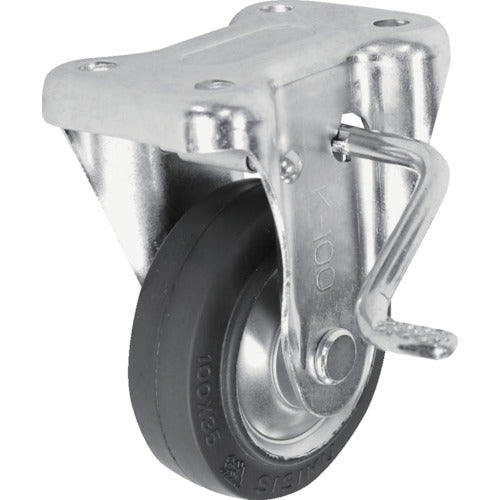

Sisiku Fixed Wheel with Brake 100mm WKB-100 1 pc

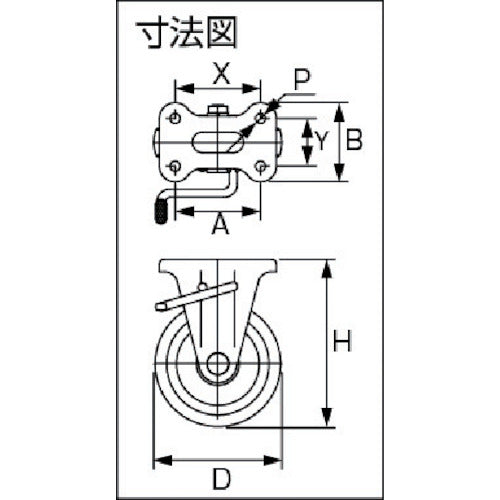

Catalogue number: WKB-100 Features: ●SISIKU standard press caster with SISIKU's unique box-style wheels that are strong and reliable. ●Highly elastic rubber wheels. Applications: ●For various transport carts Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed (with stopper) ●Allowable load (daN): 127 ●Allowable load (kgf): 130 ●Wheel width (mm): 35 ●Mounting height H (mm): 144 ●Mounting seat A (mm): 115 ●Mounting seat B (mm): 79 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 45 ●Mounting hole diameter P (mm): 11 ●Plate type ●Press bearing included ●Fixed (with stopper) ●Also available with left side stopper (except Φ75) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Steel wheels, rubber
