Sisiku Air-filled Caster with Swivel Wheels, 220mm, AIJ-2.50-4, 1 pc

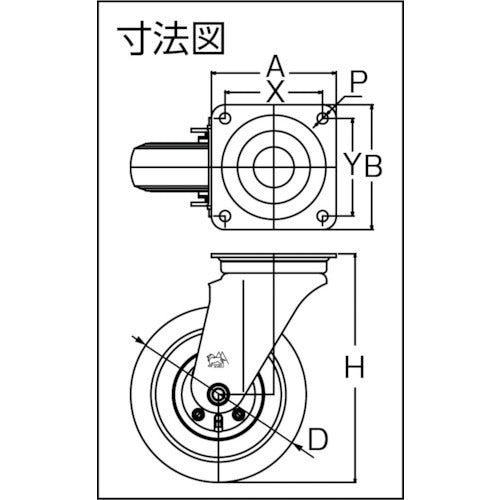

Catalogue number: AIJ-2.50-4 Features: ● Pneumatic wheels use air pressure cushioning to soften the impact on uneven floors. Applications: ● For transport carts used outdoors or on floors with steps Specifications: ● Wheel diameter D (mm): 220 ● Type: Swivel ● Allowable load (daN): 83 ● Allowable load (kgf): 85 ● Wheel width (mm): 65 ● Hole diameter (mm): 20 ● Mounting height H (mm): 287 ● Mounting seat A (mm): 160 ● Mounting seat B (mm): 160 ● Mounting pitch X (mm): 125 ● Mounting pitch Y (mm): 125 ● Mounting hole diameter P (mm): 14 ● Swivel ● Plate type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Steel wheels, rubber SBR
