Sisiku shock absorbing caster 5, swivel, 50 diameter, R rubber wheel, SAJ-TS6-50R, 1 piece

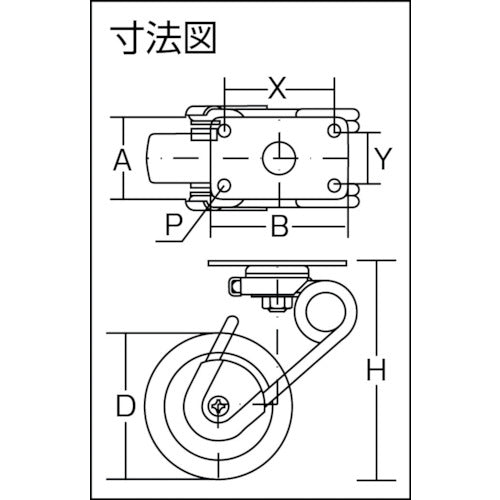

Catalog number: SAJ-TS6-50R Features: * Unique style, the fork itself is a spring. * The use of a torsion spring reduces shock and vibration from all directions, while also reducing noise generation. * The cushioning reduces the burden on the turning and wheel parts, ensuring their long life. * Patented. (No. 4579285) * Winner of the 2010 Good Design Award and the 2012 iF Design Award. Uses: ● For welfare and medical equipment ● For lightweight transport ● Various design wagons Specifications: ● Wheel diameter D (mm): 50 ● Type: swivel ● Set load (daN): 29 ● Set load (kgf): 30 ● Wheel width (mm): 25 ● Mounting height H (mm): 87-75 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 43 ● Mounting pitch X (mm): 56 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 6.3 ● Buffer load (kg): up to 40 ● Maximum allowable load (kg): up to 40 ● Swivel ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: U trivalent chromate ● Wheels: R rubber
