Sisiku shock absorbing caster, swivel, 150 diameter, rubber wheel, SAJ-HO-150W, 1 piece

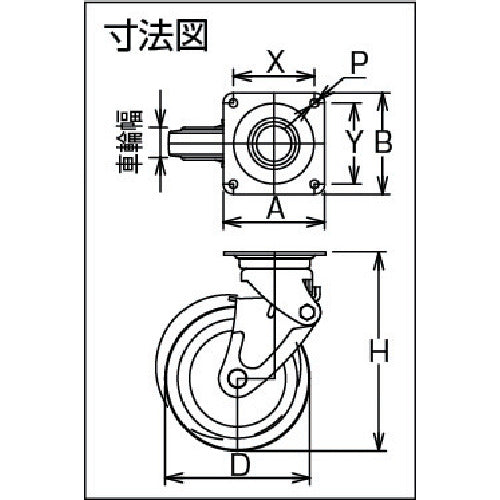

Catalog number: SAJ-HO-150W Features: ● Caster for towing. ● The wheels are a unique box style that is highly durable. ● The use of a center coil spring reduces shock and vibration from all directions and prevents noise generation. Uses: ● Transporting precision instruments and parts Specifications: ● Wheel diameter D (mm): 150 ● Type: swivel type ● Set load (daN): 147 ● Set load (kgf): 150 ● Wheel width (mm): 45 ● Mounting height H (mm): 250-235 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 112 ● Mounting pitch Y (mm): 112 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Swivel type ● Press bearing (with retainer) included Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Steel wheels ● Wheels: Rubber (W) Note: ● The set load indicates the load at which the most effective cushioning against vibration can be obtained per unit.
