Sisiku shock absorbing caster, swivel, 200 diameter, super solid wheel, SAJ-TO-200SST, 1 piece

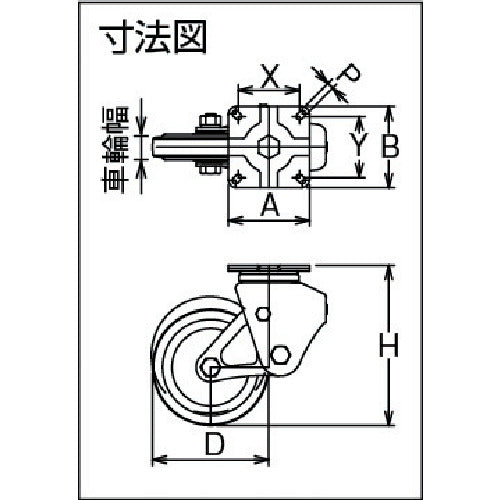

Catalog number: SAJ-TO-200SST Features: ● Caster for towing. ● Can handle towing speeds up to 20km/h. (Reference value of Sisiku test data) ● Reduces vibration and shock during driving, as well as noise generation. ● Sealed radial ball bearings are used for the wheels and the cushioning fulcrum, allowing for quiet and smooth movement without the need for grease injection. ● The rotating part has a double structure of tapered roller bearings and thrust bearings, allowing it to withstand large impacts. ● The cushioning reduces the burden on the rotating part and wheel rotation part, resulting in a longer life. (Patent No. 4651658) ● Super solid type (SST) with high starting performance. Uses: ● Transporting precision instruments and parts Specifications: ● Wheel diameter D (mm): 200 ● Type: swivel ● Set load (daN): 245 ● Set load (kgf): 250 ● Wheel width (mm): 45 ● Mounting height H (mm): 275-255 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 105-115 ● Mounting pitch Y (mm): 105-115 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Swivel ● With tapered roller bearings Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Steel wheels ● Wheels: High starting performance super solid rubber (SST) Note: ● The set load indicates the load at which the most effective cushioning against vibration can be obtained per unit.
