Sisiku Antistatic Caster with Fixed Stopper, 75mm Diameter, Urethane Wheel, EUWKB-75, 1 Piece

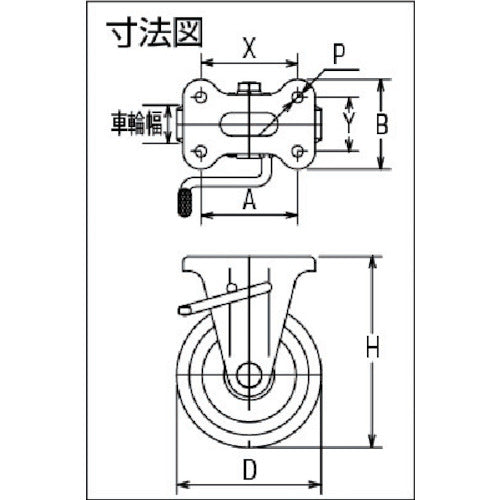

Catalog number: EUWKB-75 Features: *Conductive material is used for the wheels, so the effect remains uniform even after wear. *EUW wheels use a unique box style that is strong. *No carbon material is used, so no marks are left on the floor. Uses: ● Transporting electronic components and precision measuring devices Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed (with stopper) ● Allowable load (daN): 117 ● Allowable load (kgf): 120 ● Wheel width (mm): 32 ● Mounting height H (mm): 103 ● Mounting seat A (mm): 91 ● Mounting seat B (mm): 68 ● Mounting pitch X (mm): 63 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 9.5 ● Plate type ● Volume resistivity 10 [to the power of 6] to 10 [to the power of 8] Ω cm (Measured value. Not a guaranteed value.) ● Free swivel part is equipped with a double-layer bearing for smooth movement ● Conductive grease is used for the free swivel part ● Fixed type (with stopper) ● Also available with a left-side stopper (except Φ75) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Steel wheels, antistatic urethane
