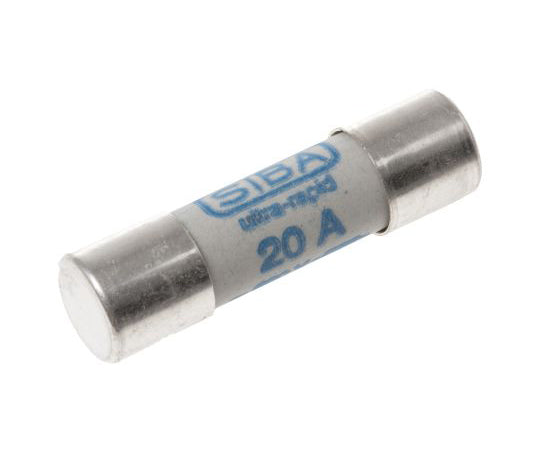

(Shiba) Ceramic tube fuse 20A 10x38mm 700V ac 1 bag (5 pieces) 50-179-06/20A 1 bag (5 pieces)

Compliant with IEC 60269-4, DIN VDE 0636 Teil 40 and UL248-13 SIBA HBC Ceramic Cartridge Fuse, Type gR SIBA ceramic cartridge fuses can be fitted with or without a blown fuse indicator or a striker pin for microswitch operation. These fuses are ultra-fast, making them ideal for power semiconductors such as diodes, thyristors and triacs, quickly and reliably disconnecting equipment from the power supply. Fuse size 10mm x 38mm Features High interrupting rating: up to 300 kA Rated voltage: 250 AC to 1000 V AC Protection of power semiconductors: in accordance with IEC 60269-1 and -4 With built-in striker pin Class: IEC 60269-4 and DIN VDE 0636-40 Why choose a glass fuse? Glass and ceramic fuses have similar characteristics. However, you may choose a glass fuse because you can see inside the fuse. This makes it easier to tell if the fuse is blown. What is Breaking Capacity? Breaking capacity is the level of current a fuse can safely handle without exploding or rupturing. The breaking capacity of a fuse must be greater than the fault current of the electronic circuit. This particular fuse is an HBC (High Breaking Capacity). Standards: IEC 60269-4, DIN VDE 0636 Teil 40 and UL248-13 compliant Certification: IEC 60269 - 4, DIN VDE 0636 Teil 40, UL 248 - 13 Quantity: 1 bag (5 pieces) Rated current: 20A Rated voltage: 700V ac Fuse size: 10 x 38mm Diameter: 10mm Total length: 38mm Body material: Ceramic High rupture capacity: Yes Application Category: gr Breaking capacity maximum voltage R: 200 kA RoHS Compliance Status: Not Applicable Code number: 314-4822
