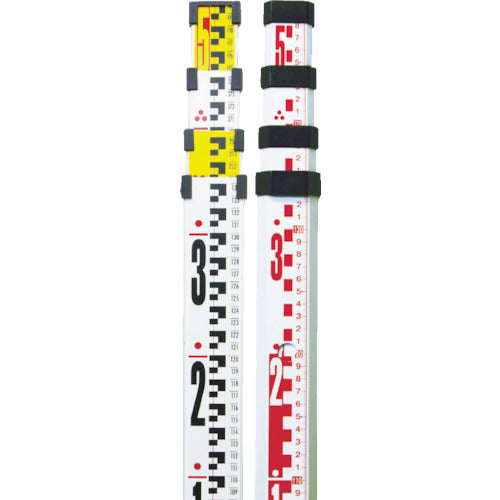

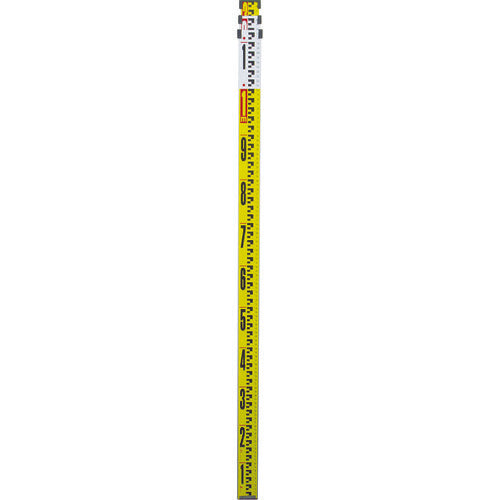

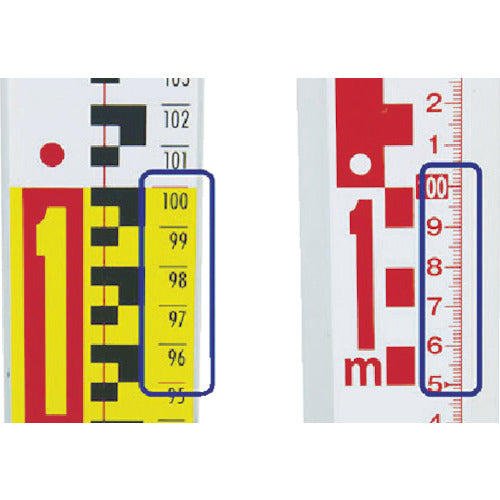

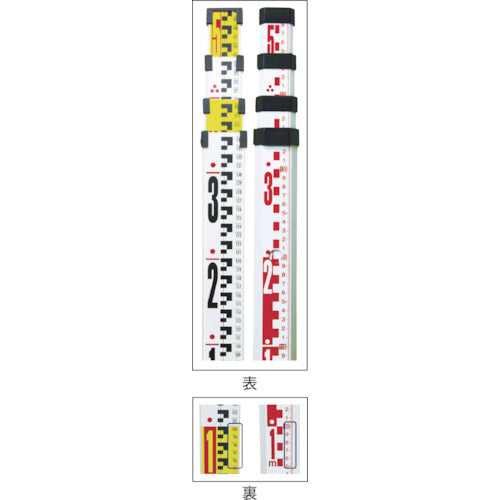

Catalog number: 73264 Features: ●The surface has easy-to-read scale lines every 10 mm, and red scale lines every 50 mm. ●The surface has alternating yellow and white body colors every 1 m, making it easy to see how many meters it is even when viewed from a distance. ●The back side has scale marks at 1 mm intervals from the reference, making it convenient for measuring exterior structures, etc. ●Made of aluminum alloy, it is lightweight and water resistant. ●The common lock button for each stage allows for one-touch removal and easy disassembly and cleaning. Uses: ●For surveying work. Specifications: ●Type (steps): 3 ●Collapsed length to total length (mm): 1188-3000 ●Width (mm): 50 ●Scale on front: 10mm scale ●Scale on back: 1mm scale ●Vertical length (mm): 1188 ●Total length (mm): 1188 ●Depth (mm): 1188 ●Height (mm): 27 ●Scale on front: 10mm pitch, body color divided into yellow and white every 1m ●Scale on back: With continuous scale with 1mm pitch Material/Finish: ●Body: Aluminum ●Joint: ABS resin
