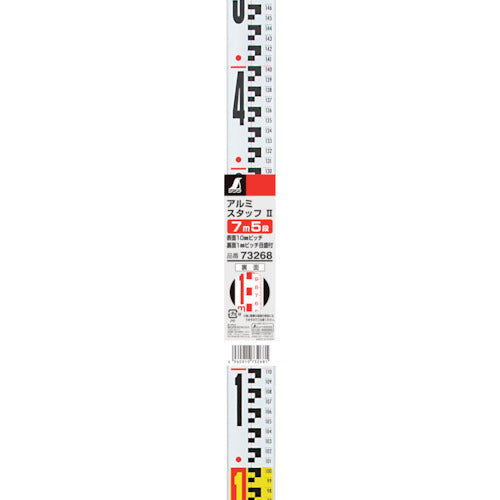

Shinwa Aluminum Staff 2 7m 5-tier, 10mm pitch on the front, 1mm pitch on the back, scale 73268 1 piece

Catalog number: 73268 Features: ●The surface has easy-to-read scale lines every 10 mm, and red scale lines every 50 mm. ●The surface has alternating yellow and white body colors every 1 m, making it easy to see how many meters it is even when viewed from a distance. ●The back side has scales with 1 mm pitch from the reference, making it convenient for measuring exterior structures, etc. ●Made of aluminum alloy, it is lightweight and water resistant. ●The common lock button for each stage allows for one-touch removal, making it easy to disassemble and clean. ●It is small enough to be carried in a car. ●It is convenient for measurements in places with large differences in elevation, such as along the coast or on hills. Uses: ●For surveying work. Specifications: ●Type (steps): 5 ●Collapsed length to total length (mm): 1645 to 7000 ●Width (mm): 50 ●Scale on surface: 10 mm scale ●Scale on back: 1 mm scale ●Scale on front: 10 mm pitch, body color divided into yellow and white every 1 m ●Scale on back: With continuous scale at 1 mm pitch Material/Finish: ●Body: Aluminum ●Joint: ABS resin
