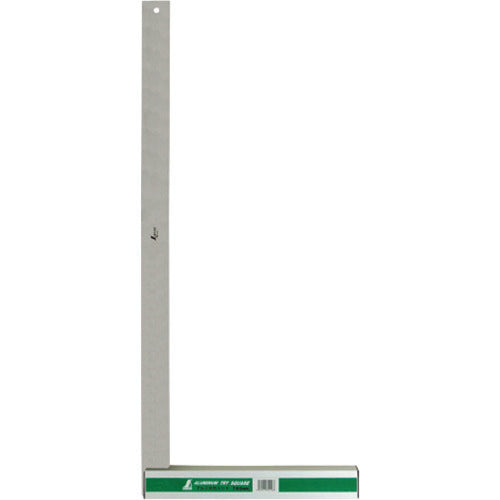

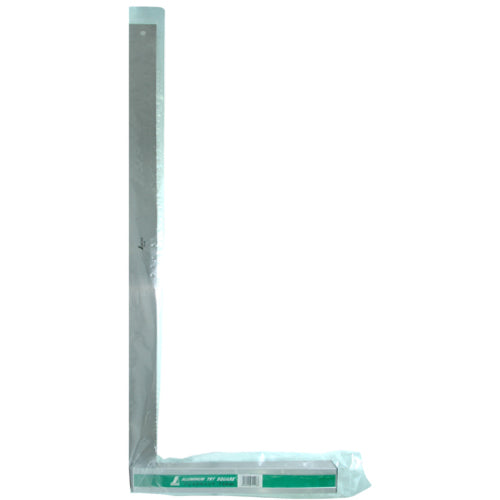

Shinwa Aluminum Square with Base 700mm 74118 1 pc

Catalog number: 74118 Features: ●Long rod length is convenient for marking multiple materials at the same time. Applications: ●For inspection and marking of right angles. Specifications: ●Base length (mm): 305 ●Width (mm): 40 ●Base width (mm): 30 ●Thickness (mm): 30 ●Base thickness (mm): 30 ●Nominal dimensions (mm): 700 ●Shape: With base ●Accuracy: Less than 0.1 mm per 100 mm ●90° accuracy: Less than 0.1 mm per 100 mm Materials/Finish: ●Base: Aluminum ●Rod: Stainless steel Caution: ●Dropping or impact may cause misalignment. ●Be sure to check the accuracy before use.
