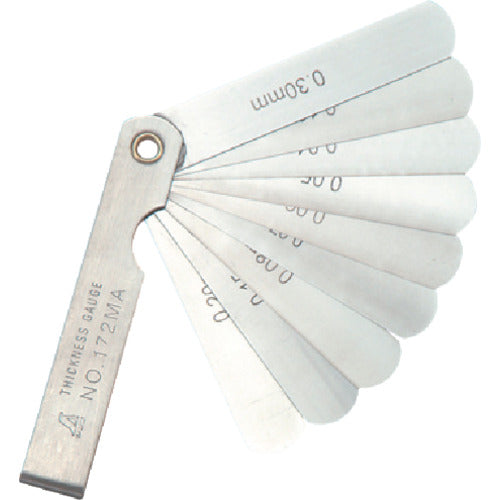

Shinwa Thickness Gauge A 75mm 9-piece set 73776 1 piece

Catalog number: 73776 Features: ● Thickness gauges available in a wide variety of lengths and leaves to suit different applications. Applications: ● Insert into gaps to measure dimensions. Specifications: ● Manufacturer code: 73776 ● Leaf shape: A ● Length (mm): 75 ● Length (m): 0.075 ● Number of pieces (pieces): 9 ● Set details (mm): 0.30, 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20 ● Thickness (mm): 0.30, 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20 ● Leaf width: 13mm ● Thickness tolerance: 0.03mm or more and 0.15mm or less: ±0.005mm, 0.15mm or more and 0.50mm or less: ±0.012mm, 0.50mm or more and 3.00mm or less: ±0.020mm Material/Finish: ● Body: Carbon tool steel Set contents/Accessories: ● Storage case Caution: ● Never forcefully insert the leaf. ● The thickness tolerance is for one leaf. When using multiple leaves, the tolerance is the sum of the two.
