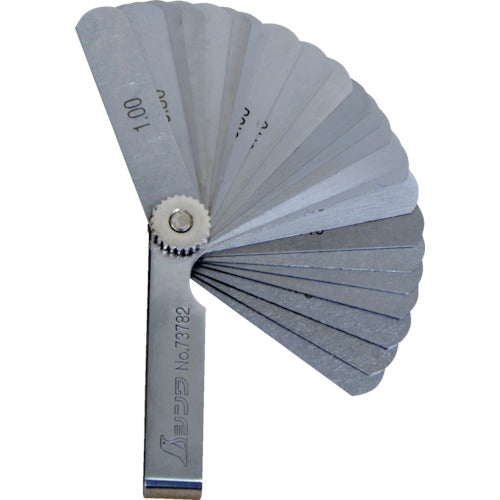

Shinwa Thickness Gauge D 65mm 25-piece set 73782 1 piece

Catalog number: 73782 Features: ● Thickness gauge with a wide variety of lengths and leaves to suit your needs. ● Leaves can be removed by removing the leaf locking screws. Applications: ● Insert into gaps to measure dimensions. Specifications: ● Manufacturer code: 73782 ● Leaf shape: A ● Length (mm): 65 ● Length (m): 0.065 ● Number of sheets (sheets): 25 ● Set details (mm): 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.11, 0.12, 0.13, 0.14, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.60, 0.75, 0.80, 0.90, 1.00 ● Thickness (mm): 0.03, 0.04, 0 .05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.11, 0.12, 0.13, 0.14, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.60, 0.75, 0.80, 0.90, 1.00●Leaf width: 14mm●Thickness tolerance: 0.03mm to 0.15mm: ±0.005mm, 0.15mm to 0.50mm: ±0.012mm, 0.50mm to 3.00mm: ±0.020mm Material/Finish:●Body: Carbon tool steel Set contents/Accessories:●Storage case Caution:●Do not force the leaf insertion.●The thickness tolerance is for one leaf. When used in layers, the tolerance is the sum of the two.
