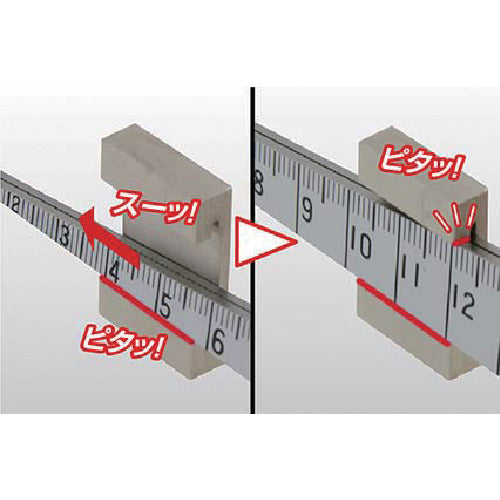

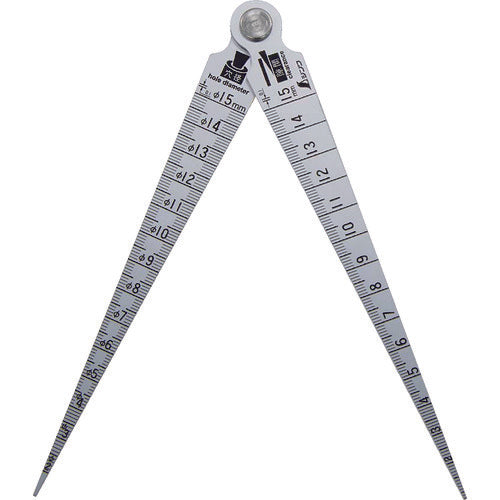

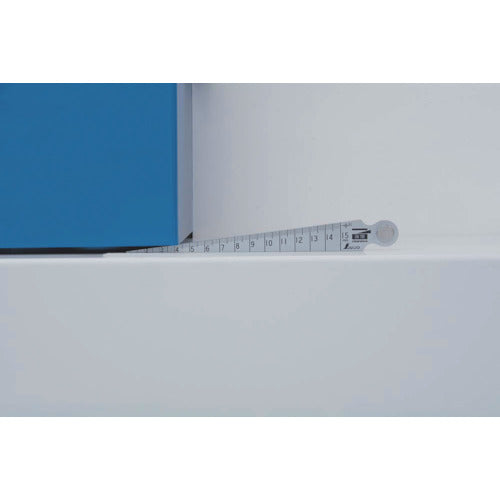

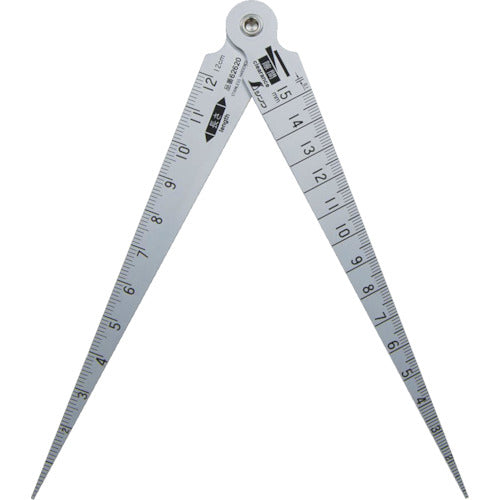

Catalog number: 62620 Features: ●The thickness of the two sheets combined allows for stable vertical insertion without shaking against the measurement reference surface. ●The hole diameter measurement scale has been pre-corrected for errors due to the plate thickness, eliminating the need for troublesome conversions. ●Can be used to measure gaps, hole diameters, and lengths. ●The scale numbers are etched and black-plated to prevent peeling. Applications: ●For measuring gaps, hole diameters, and lengths. Specifications: ●Length (mm): 144 ●Measuring range (mm): Gap 1-15, hole diameter φ2-15/0-120 ●Instrument error (mm): Gap ±0.05 (±0.1 when two sheets are combined), hole diameter ±0.05, length ±0.15 ●Thickness (mm): 5.5 ●Width (mm): 16.3 Material/Finish: ●Stainless steel (SUS420J2) Caution: ●Do not use in places exposed to electricity.
