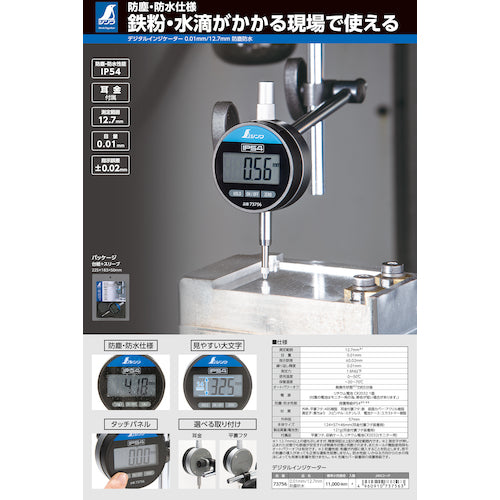

Catalog number: 73756 Features: ●Large characters with a character height of 14 mm, and a touch panel type LCD. ●Dustproof and waterproof, so it can be used in locations where it is exposed to iron powder and water droplets. Applications: ●When measuring roundness, parallelism, and flatness. Specifications: ● Measurement range (mm): 0.01 to 12.7 ● Minimum display (mm): 0.01 ● Scale specifications: Digital ● Measuring force (N): 1.6 or less ● Dial diameter (mm): 57 ● Power source: 1 CR2032.0 lithium battery ● Protection rating: IP54 ● Power source (V): 1 CR2032.0 lithium battery ● Repeatability (mm): 001 ● Operating temperature (℃): 0 to 50 ● Auto power off: after approximately 5 minutes of no operation Materials/Finish: ● Outer frame and flat back cover: ABS resin, spindle: Stainless steel, battery case: Elastomer resin ● Back cover with lug: Iron ● Full cover: Acrylic resin ● Measuring probe: Brass Set contents/Accessories: ● Flat back cover ● Storage case ● Lithium battery CR2032 (for monitor) Note: ● IP54 is the protection rating when the tip cover is attached.
