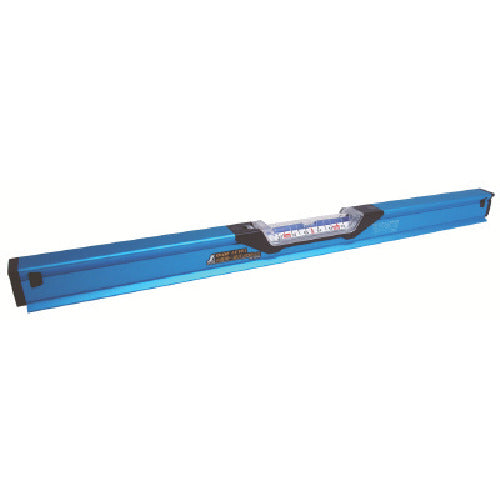

Shinwa Blue Level, Gradient, Single Pipe Type, 600mm, 76359, 1 unit

Catalog number: 76359 Features: ● A large single-tube bubble is used, allowing you to check the gradient in both directions. ● Horizontal and five types of gradient (0.5/100, 1/100, 1.5/100, 2/100, 2.5/100) can be measured. ● The measurement reference surface is curved, allowing for stable installation on pipes, etc. ● Uses a large glass bubble that is easy to read. ● Comes with a phosphorescent sheet, making it easy to read even in the dark. ● If the bubble cover is damaged, it can be replaced. ● Even if sand or mud gets in during work, the inside can be washed with water, so it can be stored cleanly. Uses: ● For checking and adjusting the gradient when installing drainage pipes. Specifications: ●Color: Blue ●Length (mm): 600 ●Height (mm): 42 ●Thickness (mm): 34 ●Magnet: None ●Body color: Blue ●Vibrous tube color: Blue ●Accuracy: ±1.5mm/m ●Minimum reading value: 0.5/100 Material/Finish: ●Body: Aluminum ●Vibrous tube: Glass ●Cover: ABS resin, polycarbonate ●Liquid: Petroleum-based liquid ●Side cap: Rubber
