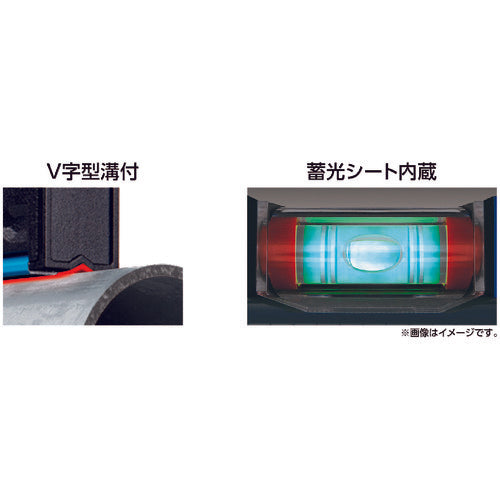

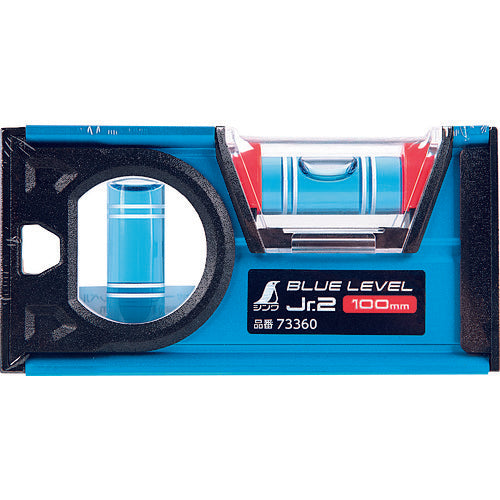

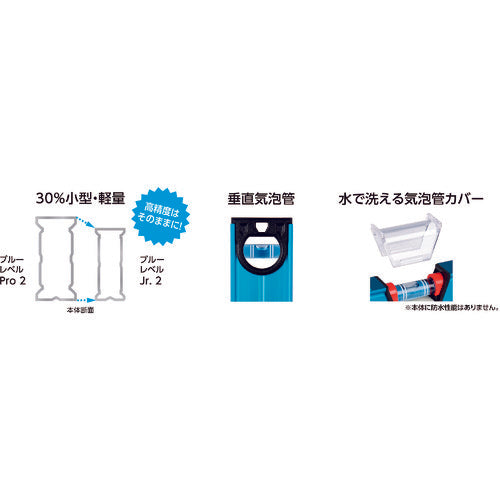

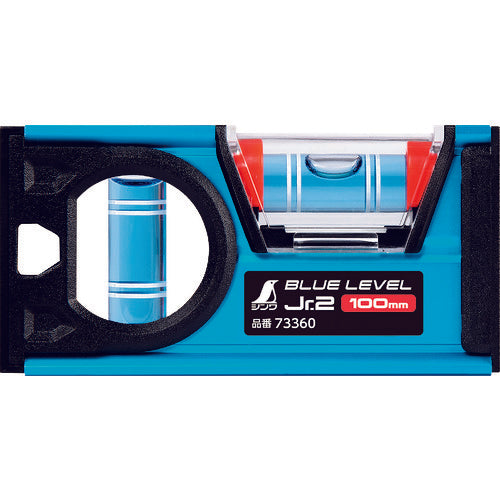

Catalog number: 73360 Features: ●30% smaller and lighter than Blue Level Pro. ●The horizontal bubble cover can be removed, making it easy to wash and replace. ●Horizontal, vertical and 45° measurements are possible (100mm model only has no 45° bubble). ●V-groove on the bottom of the unit allows it to be placed on a pipe. ●Luminous sheet is attached to the horizontal bubble so that it can be used in dark places. Applications: ●For horizontal, vertical and 45° measurements (100mm model cannot measure 45°). Specifications: Color: Blue Length (mm): 100 Height (mm): 50 Thickness (mm): 20 Magnet: None Body color: Blue Vial color: Blue Precision: Within ±1.0mm/m=0.0573° Sensitivity: 0.35mm/m=0.0201° Vial type: Horizontal, vertical, 45° Measurement surface groove: With V groove Side protector: Black Luminous sheet: Yes Surface treatment: Color anodized Material/Finish: Body: Aluminum, ABS resin, polycarbonate resin Vial: Acrylic resin Liquid: Petroleum-based liquid Caution: This product is not waterproof. If placed in a place with strong acidity or alkalinity (such as wet concrete), the color of the body may fade or transfer.
